 Multiple spinde drilling machine |
 |
|

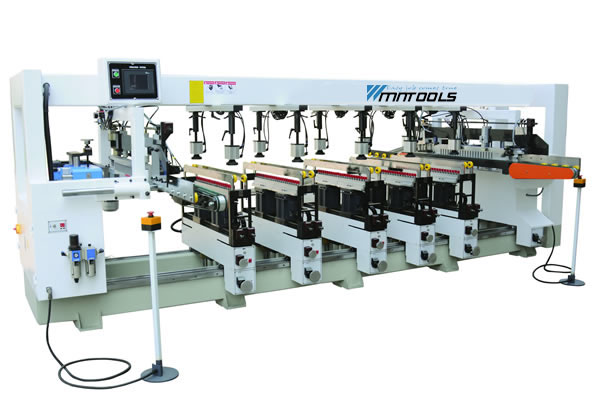

Auto feeding Seven rows multi-spindle boring machine
Model No.: |
MTMBM-700 |
Distance between the drill bits |
32mm |
Horizontal drilling head Qty |
2pcs |
Vertical drilling head Qty |
5x2=10pcs |
Qty of drilling big |
152pcs |
Max. panel thickness |
60mm |
Max. panel width |
2450mm |
Min. panel width |
250mm |
Feeding speed |
57m/min |
Total power |
14.75kw |
Air pressure |
0.6-0.8Mpa |
Machine size |
4150x1800x1600mm |
Packing size |
4230x1970x1800mm |
N.W |
2800kgs |
|
|
|
